Alvin G Power Connection

For Alvin G games, we provide an Alvin G to Stern power connector. This puts a Stern style power connection in the head of your game. The Alvin G board set we tap off the upper right board the 4 pin connector on the right. We are using the coin counter, which is optional and probably unused in most games. But we also provide a pass through connector in case you use your coin counter.

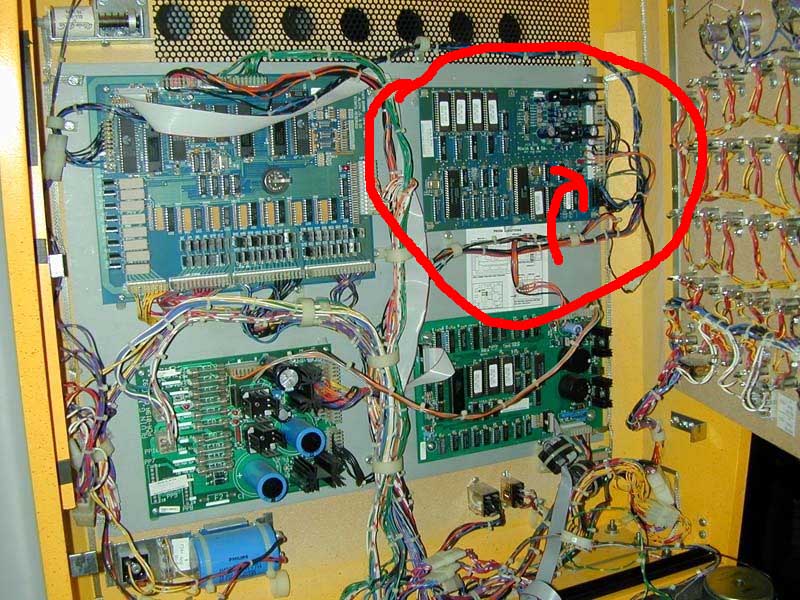

Here is the board

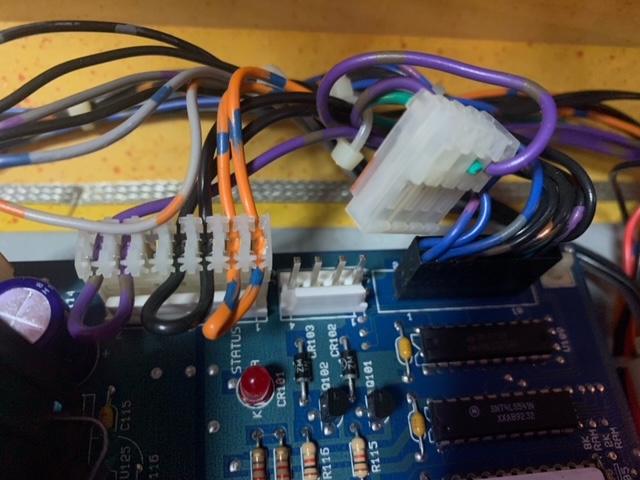

Here is a close up of the connector removed off the board. It is 4 pins with 2 wires on it.

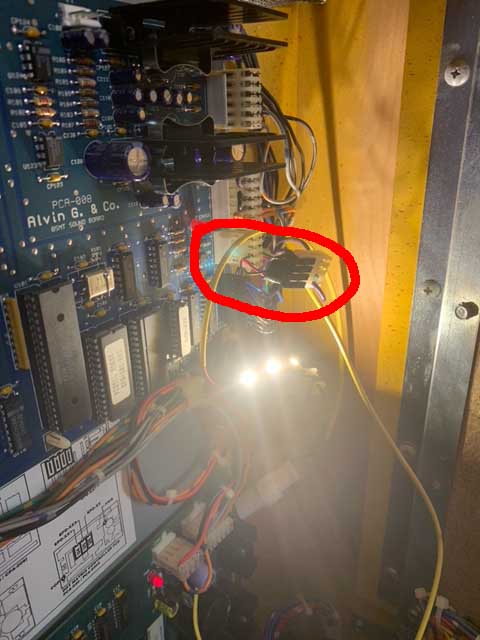

Our power adapter plugs into the board and then provides a pass through connector for you to plug your 4 pin connector back into. The Violet lines up with the Red and Green lines up with the black.
